Quality from the Black Forest

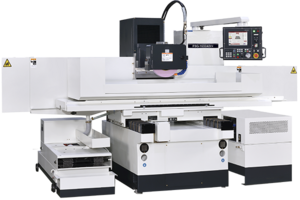

Profile surface grinding machines

The SMART types 2440 IV H/B-2480 IV H/B and 818 IV H/B to 1640 IV H/Bare the perfect solution for grinding complex profiles and machining workpieces with difficult profile shapes, as well as general precision machining of tools, molds, punches and dies, production of camshafts. Areas of application: Automotive industry; aerospace industry, medical technology, energy technology.

With 2 or 3 CNC-controlled axes on the same side, with cross table or traveling column. Various grinding cycles: surface grinding, cross grinding, plunge grinding and profile grinding. can be interlinked. Grinding length: from 460 mm to 2,000 mm; spindle speed: range from 1,000-7,000 rpm.

SMART 2048 IV H/B - 2480 IV H/B series

SMART profile sanding machine . B version with ball screw drive in longitudinal axis. H version with hydraulic drive in longitudinal axis.

mm
mm
min−1
kg
1.200 - 2.000
500 - 600
5 - 2.200 U/min.
8.000 - 9.600
details

SMART 818 IV H/B series - SMART 1640 IV H/B series

SMART profile sanding machine . B version with ball screw drive in longitudinal axis. H version with hydraulic drive in longitudinal axis.

mm
mm
min−1
kg
460 - 1.015
220 - 450
600 - 7.000
1.210 - 3.500
details

You could also use these machines

Slant-bed-lathes

  • with cycle input or CNC control
  • 2-axis and 3-axis version
Show Details

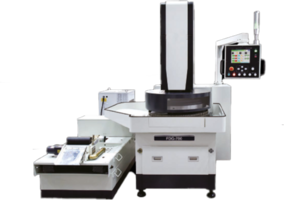

Double-sided grinding machines
