Surface grinding machines

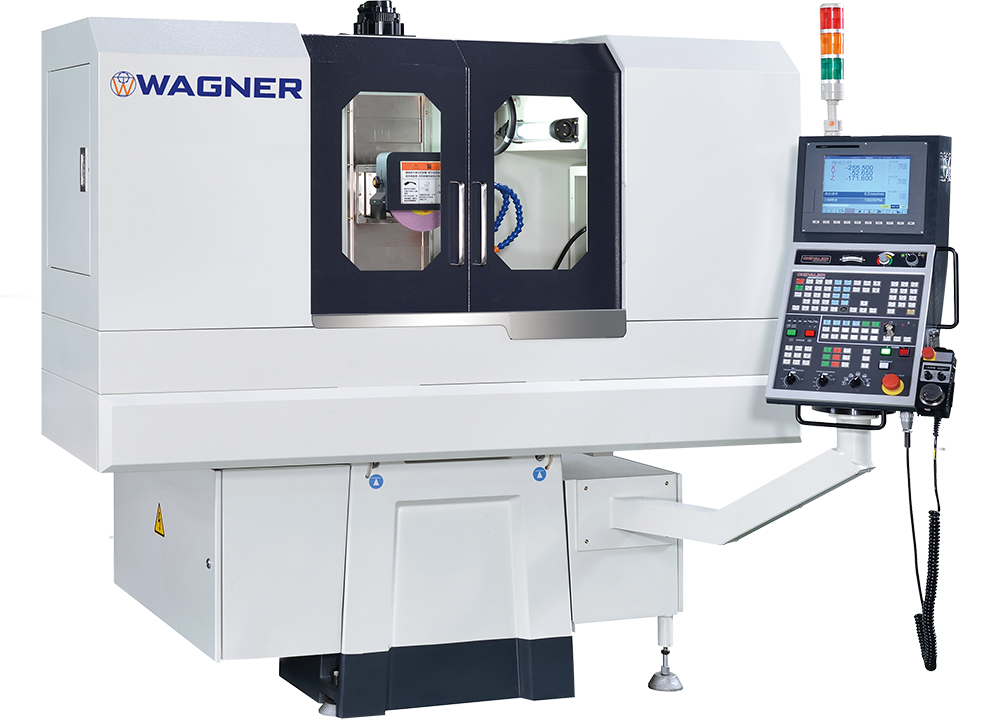

In the area of CNC surface grinding machines (also known as horizontal surface grinding machines), we offer you a diverse selection with different grinding ranges such as grinding length (from 450 mm to 2,000 mm) and grinding width (from 215 mm - 675 mm) and performance features such as CNC-controlled grinding or cycle-controlled grinding.

Grinding machines for surface grinding metal processing are available from Wagner in 2-axis and 3-axis versions.

FSG AD IV Series 2048 - 2480

High-performance surface grinding machines with cycle input and three controlled axes.

mm
mm
min−1
kg
1.200 - 2.000 mm
500 - 600 mm
500 - 2.200
6.400 - 10.600
details

FSG AF

Cycle control, "dynamic" balancing of the grinding wheel integrated in the machine. Load and vibration monitoring. Intelligent grinding options for asymmetrical parts, no air machining.

mm
mm
min−1
kg
610 - 1.015
305 - 405
500 - 2.200
3.700 - 5.500
details

FSG 3A

Horizontal surface grinders or universal surface grinders: Their very robust and compact design, the use of high-quality materials and careful assembly guarantee very precise and accurate grinding of workpieces.

mm
mm
min−1
kg
450 - 610
225 -400
1.450 -2.850
1.190 -2.100
details

FSG AD IV series 1224 - 1640

High-performance surface grinding machines with cycle input and three controlled axes.

mm
mm
min−1
kg
610 - 1.015 mm
305 - 405 mm
500 - 2.100
2.200 - 3.500 kg
details
