OUR DIVERSE RANGE

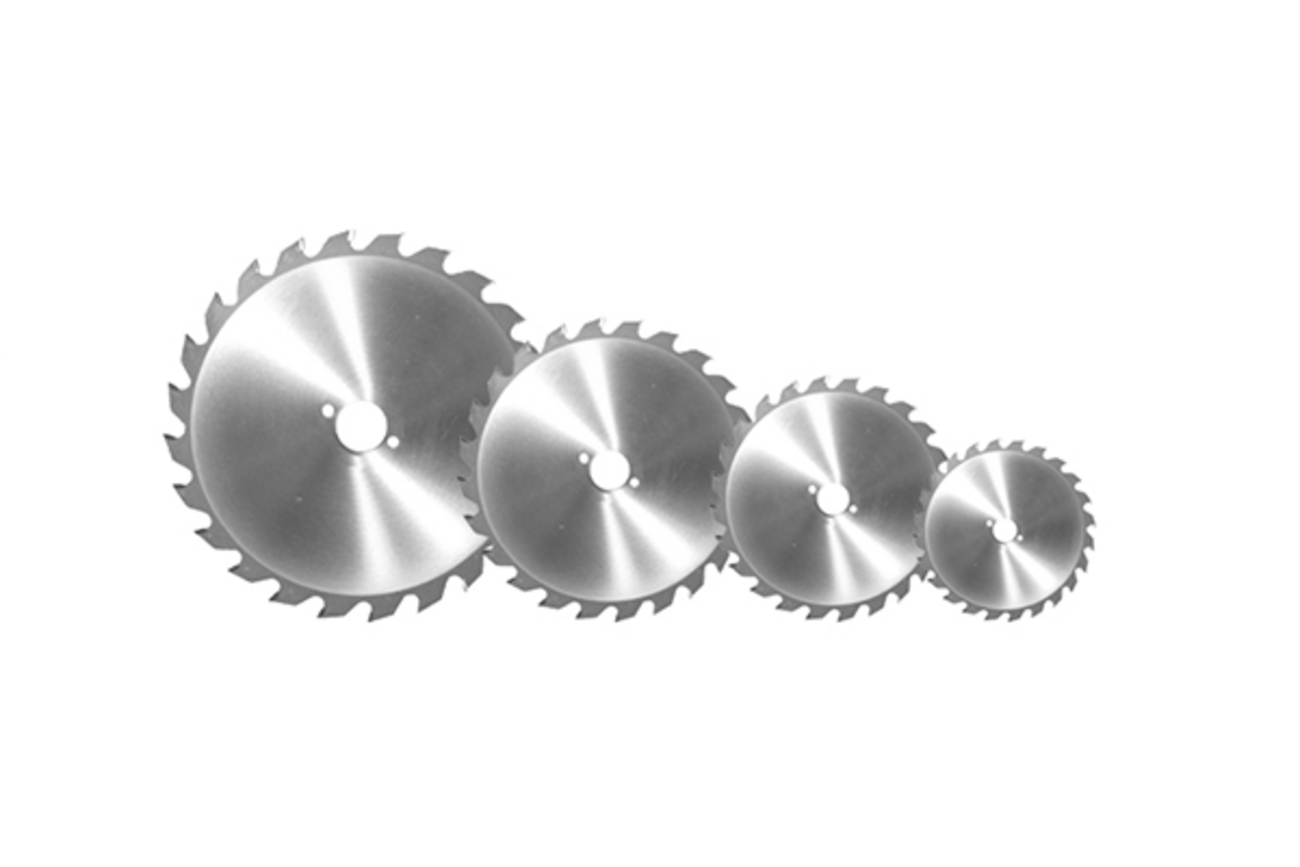

Cut-off saw blades

TRENNJAEGER® HSS saw blades

Type Secondary holes	Dimension mm	Tooth pitch (ZT) Fine <-----------------> Coarse
S 315	275x3.5x50	4 ZT 655073	6 ZT 655077	8 ZT 655050	10 ZT 655014
315	275x3.5x50	4 ZT 655073	6 ZT 655077	8 ZT 655050	10 ZT 655014
	300x2.5x40	4 ZT 655051	6 ZT 655052	8 ZT 655053	10 ZT 655054
	315x2.5x40	4 ZT 655590	6 ZT 655592	8 ZT 655593	10 ZT 655591
S 350	350x3x40	5 ZT 655307	6 ZT 655034
S 370	370x3x40	8 ZT 655323	12 ZT 655690
VCT 400 80/4/14	400x3.5x50	6 ZT 655309	8 ZT 655310	10 ZT 655311	12 ZT 655312	14 ZT 655313
	425x3.5x50	6 ZT 655617	8 ZT 655176	10 ZT 655048	12 ZT 655049	14 ZT 655175
TUS 470 116/80/4/14	400x4,0x50	6 ZT 655080	8 ZT 655081	10 ZT 655082	12 ZT 655083	14 ZT 655084
	450x4,0x50	6 ZT 655315	8 ZT 655618	10 ZT 655317	12 ZT 655318
	460x4.0x50	6 ZT 655187	8 ZT 655188	10 ZT 655189	12 ZT 655190
	470x4,0x50	6 ZT 655085	8 ZT 655086	10 ZT 655087	12 ZT 655088

TRENNJAEGER® - ALU saw blades

Type Secondary holes	Dim. mm	Tooth pitch Order no.	Fine <-------> Coarse
WAK 350 HA	350x3.3x32	84 ZT 655230	108 ZT 655215
	400x3.8x32	72 ZT 655225	96 ZT 655210
	450x3.8x32	96 ZT 655236	110 ZT 655221
	500x4,2x50	72 ZT 655203	120 ZT 550030
	600x4,5x50	72 ZT 655352	132 ZT 555351
WAK 700	700x5.5x50	655812

TRENNJAEGER®- TCT saw blades

Type Secondary holes	Dim. mm	Tooth pitch Order no.	Fine <------> Coarse
SPA 75/80	285x1.7/2.0x32	60 ZT 550011	72 ZT 550012	80 ZT 550013
SPA 120	380x2.5/2.6x40	60 ZT 550031	80 ZT 550032
SPA 160	460x2.25/2.7x50	60 ZT 550045	80 ZT 550032
