Quality from the Black Forest

CNC inclined bed lathes

Inclined bed machining is ideal for dynamic and precise machining cycles to ensure optimum rigidity. Another advantage of the inclined bed design is the free chip fall during dry machining, as the inclination of the bed improves chip evacuation at 45 degrees. Our WDS series offers a compact design, high rigidity and is perfect for heavy-duty machining up to a swing diameter of 900 mm and a center distance of 3,000 mm - with chip conveyor and chip carriage as standard. Perfect solutions for your demanding machining requirements!

WDS 570 / 570 A / 570 A/Y

Ideal for standard part machining
Cycle CNC slant bed lathe with driven tools (A) or counter spindle (Y)
Slant bed at 45°
VDI 40 disk turret Base plate
WDS 570 A/Y x 800; BMT55

mm	mm	min−1, mm	kW
220 / 300	453 - 758	74 / 4.500	12 / 15

details

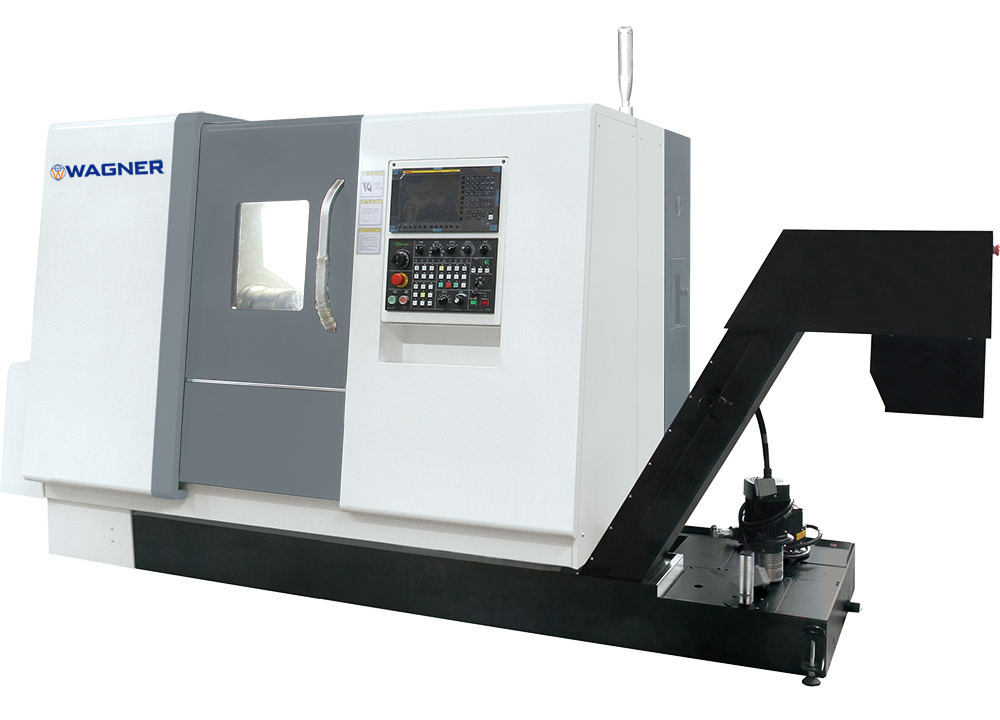

WDS 650 A / 650 A/Y

Cycle CNC lathe with Y-axis and optional counter spindle
WDS 650 A Option only with BMT 55 turret disk
VDI 40 disk turret base plate

mm	mm	min−1, mm	kW
400	540 - 550	87 / 4.000	15 / 18,5

details

WDS 680 / 680 A / 680 A/Y

Highlights

Cycle CNC lathe with Y-axis and optional counter spindle
WDS 680 A / A/Y option - only with BMT 55/65 turret disk
VDI 40/50 disk turret base plate

mm	mm	min−1, mm	kW
400	1.600 - 2.300	87 / 4.000 - 102 / 3.500	22 / 26

details
