CNC moving column machining centers

Moving column machining centers are particularly suitable for applications that require high precision, a large machining area and a flexible configuration due to their design and performance.

CNC moving column machining centers from Wagner are particularly suitable for machining large components with a clamping surface of up to 6,500 mm. For CNC machining, we offer SIEMENS 828 D and Shopmill controls as well as Heidenhain 530 i controls.

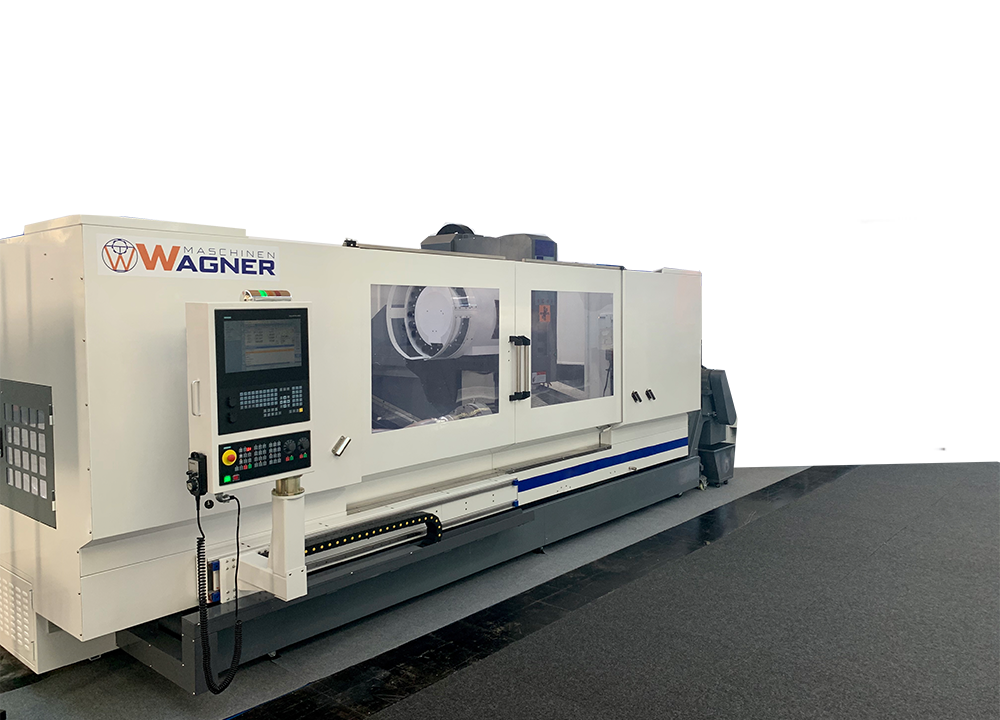

BFM 580 CNC 2500 /3000 /4500 /6500 /8500 /10000

CNC traveling column machine with vertical spindle. Available with the following versions:

3 sides 180° machining
4-sided indexed rotary tables
1 side or with 3 sides +/- 110° machining
BFM 580 x 8,500 and BFM 580 x 10,000 on request

mm	kW	min−1	kg
2.500 - 10.000 x 580 x 450	9 / 18	10.000	12.000 - 19.000

details
