FCQ 1370 / 1600
Universal vertical milling head swivels in two planes

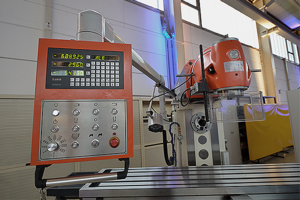

3-axis digital position indicator
Automatic feed in all 3 axes
technical data
|
FCQ 1370
|
FCQ 1600
|
|
|---|---|---|
| table clamping surface, mm | 1370 x 320 | 1.600 x 360 |
| T-slot width/spacing | 18 /80 | 18 /80 |
| max. Table load, kg | 400 | 500 |
| Distance table / spindle nose max./min. | 260-660 | 196 /648 |
| Z/X-axis travel, mm | 400 /1.000 | 450 /1.300 |
| travel distance Y-axis, mm | 380 | 320 |
| Manual cross feeds | 460 | 550 |
| longitudinal / cross feed | 30-830 mm/min | 30-750 /20-500 mm/min |
| Vertical | 23-625 mm/min | 15-375 mm/min |
| Rapid traverse: longitudinal and transverse /vertical, mm/min | ja /ja | ja /ja |
| Tool holder | ISO 40 | ISO 50 |
| Adjustment range vertical milling head | 360° | 360° |
| speed, rpm | 12-35-1.500 /11-45-1.660 | 27 /60-1.750 /60-1.800 |
| spindle motor, kW | 2,7/4 | 5,5 /4 |
| dimensions (LxWxH), mm | 1.820 x 1.680 x 1.860 | 2.560 x 2.800 x 2.000 |
| machine weight, approx. kg | 1.950 | 2.800 |

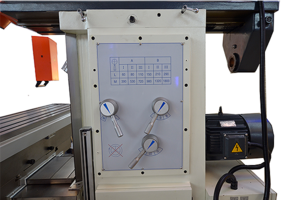

HIGHLIGHTS
- Universal vertical milling head swivels in two planes (with optional automatic clamping at the rear only)
- Separate horizontal spindle
- Automatic central lubrication
- Infinitely variable feed rates
- Rapid traverse in the X, Y and Z axes
- Cross slide can be positioned manually
